Feature:

• Apply to PCB, Electronic, Spare Parts, Plastic, Pharmacy……various industrial baking process
• High efficiency energy save air ventilation circulation system
• Uniform temperature
• Various model suit for various process

Specification:

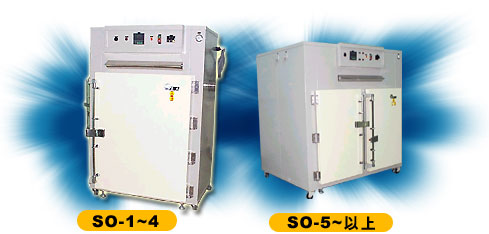

Model Inner (WxDxH)(cm) Outside (W x D x H)(Cm)
SO-1 45×40×40
(Horizontal single stream blow, single door)		 78×60×99
SO-2 60×50×60
(Horizontal single stream blow, single door)
 93×70×125
SO-3 60×50×90
(Horizontal single stream blow, single door)		 93×70×155
SO-4 80×60×100
(Horizontal single stream blow, single door)		 113×80×165
SO-5 100×60×100
(Horizontal single stream blow, twin door)		 159×80×169
SO-6 120×60×100
(Horizontal single stream blow, twin door)		 179×80×169
SO-7 140×60×120
(Horizontal single stream blow, twin door)		 199×80×191
SO-8 160×80×140
(Horizontal double stream blow, twin door)		 228×102×222
SO-9 180×100×140
(Horizontal double stream blow, twin door)		 248×122×229
SO-10 180×140×140
(Horizontal double stream blow, twin door)		 248×162×229

Note:
1. T1 (Max.200℃) or T2 (Max.350℃) are optional
2. Special dimensions are optional
Optional:
1. LCD interface controller with RS-485 port
2. Water cooler or Indirect(direct) air cooler (Expedite decrease temperature)
3. Single or multi oven PC based temperature control and recorder
4. Six point type temperature recorder

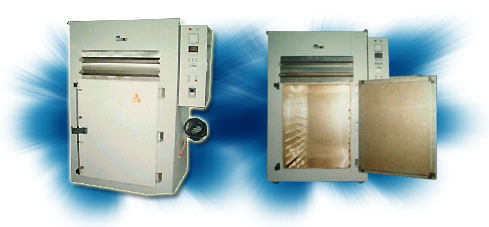

Precise high temperature hot air oven (HO) series

Feature
Temperature Max. 500℃ (The spec. please reference the SO type)

Specification:
Model Inner (WxDxH)(cm) Outside (W x D x H)(Cm)
HO-1 45×40×40 107×79×124
HO-2 60×50×50 131×91×142
HO-3 60×50×90 131×90×182
HO-4 80×60×100 151×100×196

P.C.B production oven
Vertical air ventilation circulation system
:


Specification:
Model Inner (WxDxH)(cm) Outside (W x D x H)(Cm)
SO-B7-SV 136×85×135 194×107×219

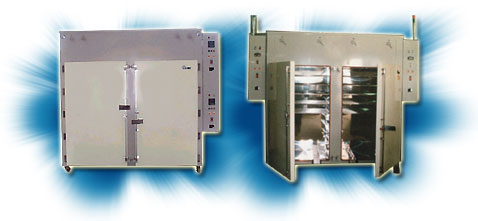

Cart type oven




Specification:
Model Inner (WxDxH)(cm) Outside (W x D x H)(Cm)
SO-7-SRO 84×70×153 140×92×207
SO-8-SRO 188×70×153 244×92×211
Note: Cart are optional with SO series

LCD curing oven 　

Feature:

• Capacity: 12 sets press holder
• Water or air cooler is optional
• Extra heater is optional


Specification:
Model Inner (WxDxH)(cm) Outside (W x D x H)(Cm)
SO-A8-SO 104×104×92 156×135×175

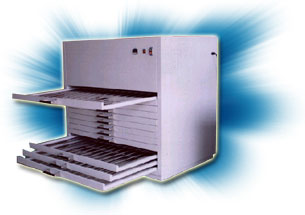

Screen dry oven


Specification:
Model Inner (WxDxH)(cm) Outside (W x D x H)(Cm) Drawer dimensions & Temperature
DSO-B2-10 120×120600(Cm) 135×126×125(Cm) 119×115×6(CM) MAX.80℃

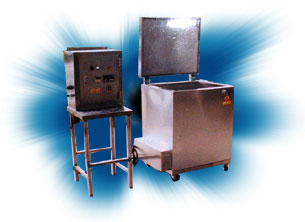

防焊退洗專用機

Specification:
Model Inner (WxDxH)(cm) Outside (W x D x H)(Cm) Temperature
SMW-B2-S 70×50×60 115×60×99 MAX. 100℃
