Feature:
• Perfect reflex ratio design, improve the strengths of the UV light
• Temperature resist and non-deformed ard aluminum alloy reflector
• Low temperature model will collocate with CM (Cold mirror), CF (Cold filter)
• Special design for different product are consultable
• Lamps from 2KW ~ 11KW, 80KW ~ 160KW suit for various requirement

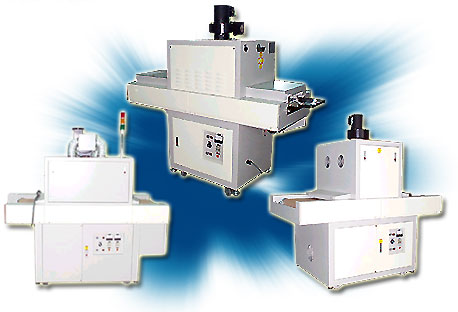

UV dryer for small size product (adhesive, screen dry)

Specification:
Model UVC-161 UVC-162 UVC-172
Lamp 2KW 80W/CM 1PC 2KW 80W/CM 1PC 3.2KW 80W/CM 2PC
Heating length 25CM 25CM 40CM
Outside 60W×150L×150H(CM) 70W×175L×140H(CM) 91W×175L×140H(CM)

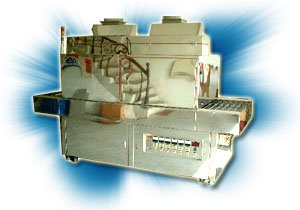

UV dryer for large plane product (PCB, Q Box)


Specification:
Model UVC-044 UVC-064 UVC-074
Lamp 5KW 80W/CM 4PC 8KW 80W/CM 4PC 8.4KW 120W/CM 4PC
Heating length 62.5CM 100CM 70CM
Outside 119W×250L×196H(CM) 154W×250L×196H(CM) 124W×220L×196H(CM)

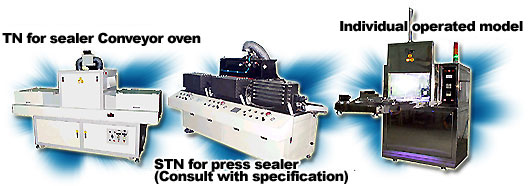

LCD seal special UV dryer series

Specification:
Model UVC-132(TN Sealer ) UVH-161-SA
(Individual operated model)
Lamp 4KW 80W/CM 2PC 2KW 80W/CM 1PC
Heating length 50CM 25CM
Outside 123W×250L×137H(CM) 90W×155L×177H(CM)

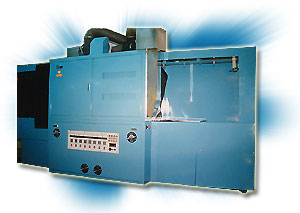

LCD TOP COATED process special purpose UV dryer
Clearness Class 100
Low temperature

Specification:
Model UVC-126-AC
Lamp 8KW 160W/CM 6PC
Heating length 50CM
Outside 117W×300L×215H(CM)

Individual UV lamp set suit for various conveyers, assembly as necessary
Separated control panel offer free space utilize design

High Clean Curing UV+IR Heating System


Various radiant UV dryer are consultable
